Types Of Actuators

INTRODUCTION

The purpose of this chapter is to introduce the various types of valve actuators currently available to operate the valves previously covered in this book. There are numerous advantages and disadvantages and actuator manufacturer performance data should be referred to in order to assist in the final decision.

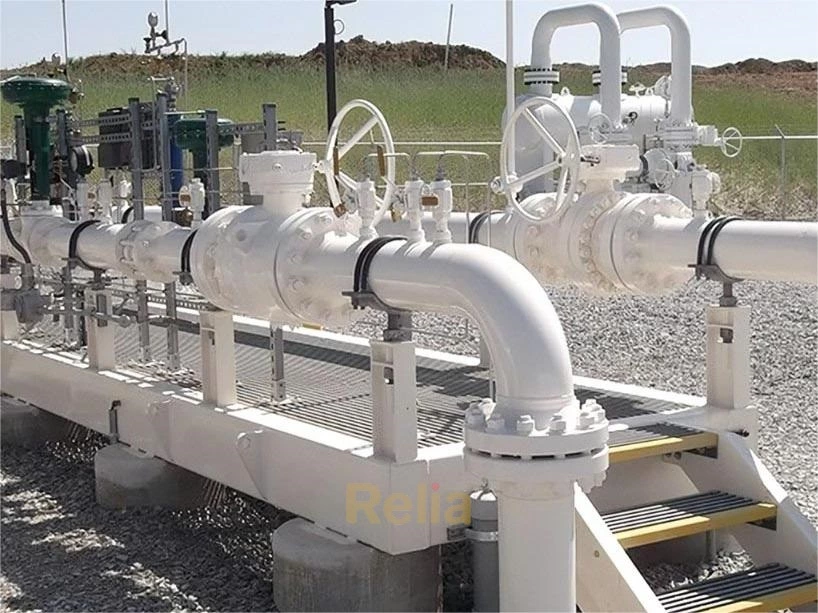

A manually operated valve is one that has to be operated by plant per- sonnel, who supply the energy necessary to open, close, or position the closing element of the valve. For a variety of reasons listed below, manual operation may not be an option and an alternative method of valve oper- ation is required. This can be achieved by adding a supplementary piece of equipment called an actuator (Figure 8-1) to the valve. This accessory can, with the energy supplied, operate the valve either by the pressing of a button, or automatically through process systems.

The decision for actuating a valve will be made because of one or more of the following reasons:

• Control of the process system

• Inaccessibility or remote valve location

• Emergency shutdown/fail-safe requirements

• Excessive valve operating torque

• Safety

Figure 8-1. Three-Phase Electric Actuator. (Courtesy of Rotork, UK)

TYPES OF ACTUATORS

The methods of valve actuation fall into one of the following categories:

1. Linear

2. Part-turn

3. Multi-turn

Each of the above can be powered by one of the following power sources:

1. Hydraulic

2. Electric

3. Pneumatic

When choosing the type of actuator the engineer must consider the following factors:

1. The actuator must deliver enough torque to move and seat the valve with the minimum power supply available and also maintain the required position (open, closed, or intermediate) under the worst ow conditions that the valve might experience.

2. The actuator must be capable of completing the travel, that is, 90°, 180°, and multi-turn at the required speed.

3. The actuator must include a device that prevents excessive forces being applied to the valve under adverse power supply conditions.
